Introduction

If you’re registering a lease, transferring part of a property, or updating title information, understanding Land Registry plans is essential. Our guide explains lease plans, title plans, transfer plans, adverse possession plans, and other legal property drawings, helping you stay fully compliant with HM Land Registry requirements.

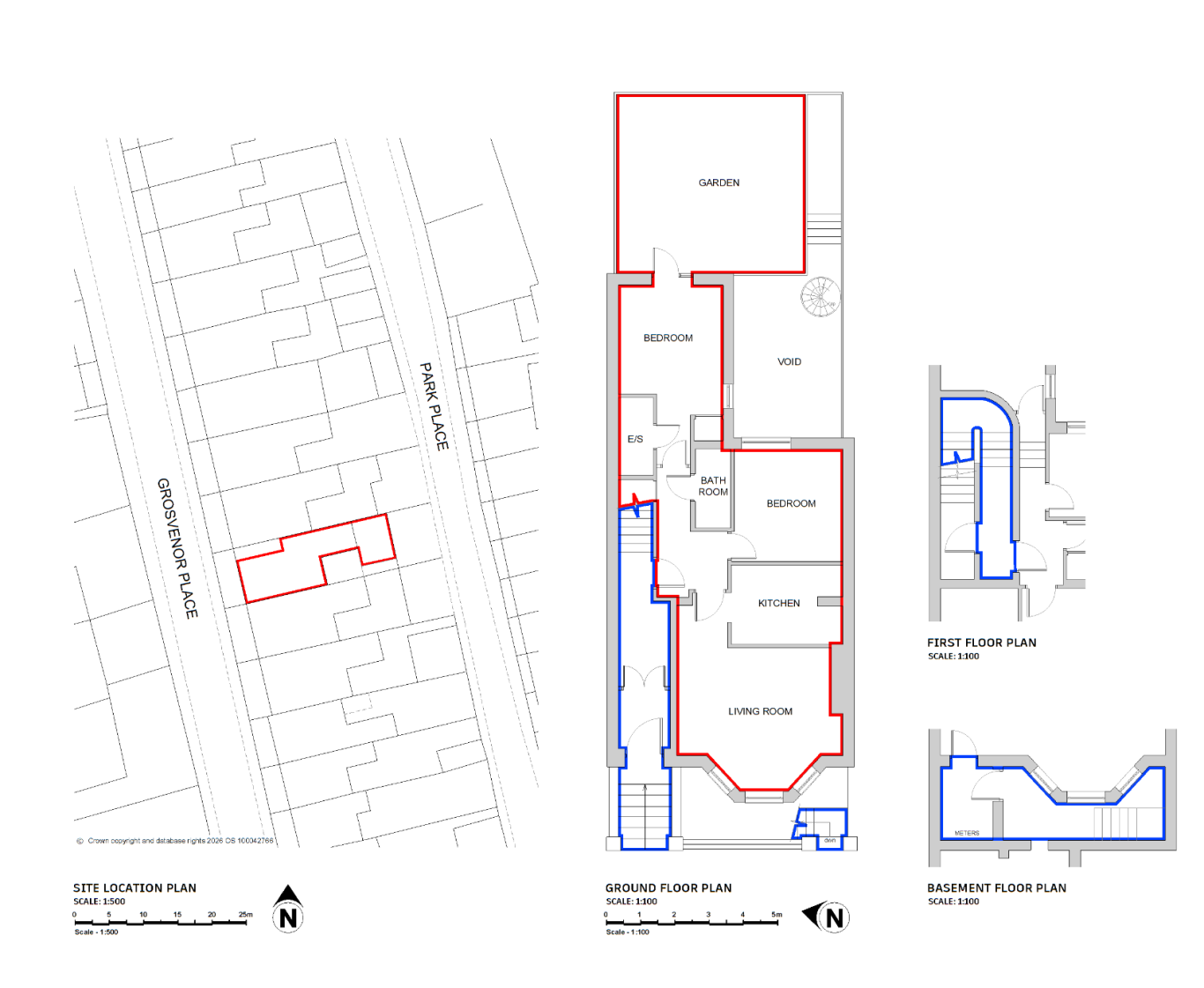

What is a Land Registry Lease Plan?

A Land Registry lease plan is a scaled drawing of a leasehold property prepared in line with HM Land Registry requirements. It defines exactly what area of a building or land is included in a lease. Lease plans are essential for registering new leases (of seven years or more) or when updating or extending existing leases. See examples here.

Why a Lease Plan is Required

- To clearly show the extent of the property being leased.
- To avoid disputes over boundaries, rights of way, or shared areas.
- To ensure HM Land Registry will accept the lease registration without delays.

Lease Plan Requirements (HM Land Registry)

A compliant lease plan must:
- Be drawn to scale (usually 1:100 for floor plans & 1:1250 for site plans).
- Show a north arrow for orientation.
- Use red edging to mark the leasehold property.
- Highlight shared or common areas in another colour (often blue or green).
- Must be sufficiently clear to identify boundaries against Ordnance Survey mapping, which is standard practice.
- Clearly show access routes, communal areas, and boundaries.

Lease plans are most often required for flats, maisonettes, commercial units, and split-use properties, where only part of a larger building or site is included in the lease.



What is a Land Registry Title Plan?

A title plan is a scaled plan prepared for HM Land Registry that defines the full legal boundary of a property. Unlike a lease plan, which covers just the leased part, a title plan shows the entire freehold or leasehold property as registered with the Land Registry. See examples here.

When Title Plans Are Needed

- When registering a property with HM Land Registry.
- When dividing or merging parcels of land.
- To clarify legal boundaries for disputes, sales, or transfers.

Title Plan Requirements

- Must be based on the latest Ordnance Survey mapping.
- Drawn to scale, usually 1:1250 for urban properties & 1:2500 for rural properties.
- Include a north point and drawn to recognised scale.
- The legal boundary is shown with red edging.
- If applicable, rights of way, easements, or covenants are marked in other colours.

A title plan is essentially the legal map of a property, showing exactly what land or buildings are owned.



What is a Land Registry Transfer Plan?

A transfer plan is required when part of a property or land is being sold or transferred. This plan defines exactly which portion of a property is changing ownership.

When a Transfer Plan is Needed

- Selling off part of a garden, plot of land, or commercial site.
- Splitting one title into multiple smaller titles.
- Transferring ownership between family members.

Transfer Plan Requirements

- Drawn to a recognised scale with a north arrow.
- Based on Ordnance Survey mapping.
- Retained land or shared rights are shown in contrasting colours.
- Must match the legal description in the transfer deed.

Without a transfer plan, the Land Registry cannot process a part-transfer of a property title.



Adverse Possession Plans

Adverse possession is the legal process of claiming ownership of land that you have occupied without permission for a certain period of time (usually 10–12 years in the UK). To make an application to the Land Registry for adverse possession, you must submit a plan showing the land claimed.

Adverse Possession Plan Requirements

- Must clearly define the area occupied, with red edging.
- Drawn to a recognised scale and show a north point.
- Based on Ordnance Survey mapping to avoid disputes.
- Should identify boundaries, access points, and adjoining land.

These plans provide evidence to the Land Registry that the land in question is clearly identified and matches the claim being made.



Other Legal Property Drawings

Beyond lease, title, transfer, and adverse possession plans, there are several other drawings often required in property transactions:

- Boundary Plans: Used to resolve disputes or clarify legal ownership of fences, hedges, or land edges.
- Conveyance Plans: Historical plans attached to old deeds that may need redrawing to modern Land Registry standards.
- Subdivision Plans: Required when splitting a single building into multiple flats or units for sale or lease.
- Rights of Way / Easement Plans: Used to show access routes, shared driveways, or utility rights.

Each must follow Land Registry mapping standards, with north arrow, scale, and colour coding for clarity.



Why Compliance Matters

HM Land Registry is strict about plan quality. Submitting non-compliant plans can lead to:

- Delays in registering leases, transfers, or ownership changes.
- Increased solicitor costs due to rejected applications.
- Legal disputes over unclear boundaries.

Using a professional service ensures plans are accurate, accepted first time, and legally compliant.
